Features

• Weight Capacity: 600 lbs
• Extra-wide, extra-high back Captain's Seat for maximum comfort
• Heavy duty motors tackle tough inclines up to 10°
• Four-post seat construction provides durable support to the frame
• Range: 32 miles
• Available in red or blue

Key Specs

• Drive Range: 32.00 miles
• Top Speed: 5.00 mph
• Heaviest Piece: 167 lbs.
• Turning Radius: 31.50"
• Weight capacity: 600 lbs.
• Weight: 304 lbs.

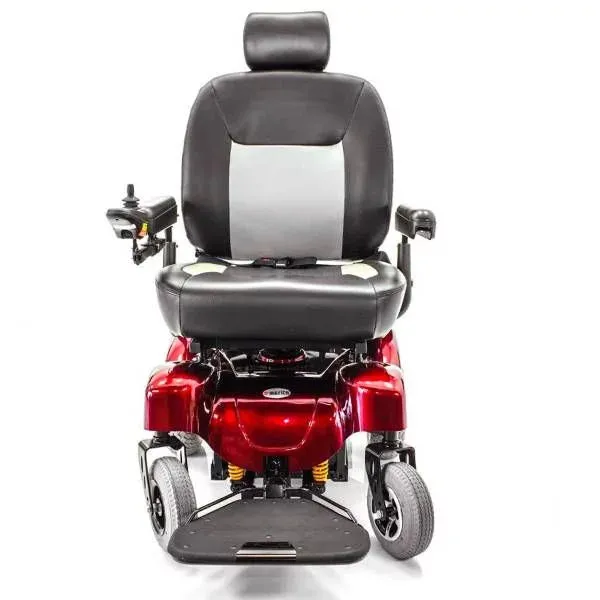

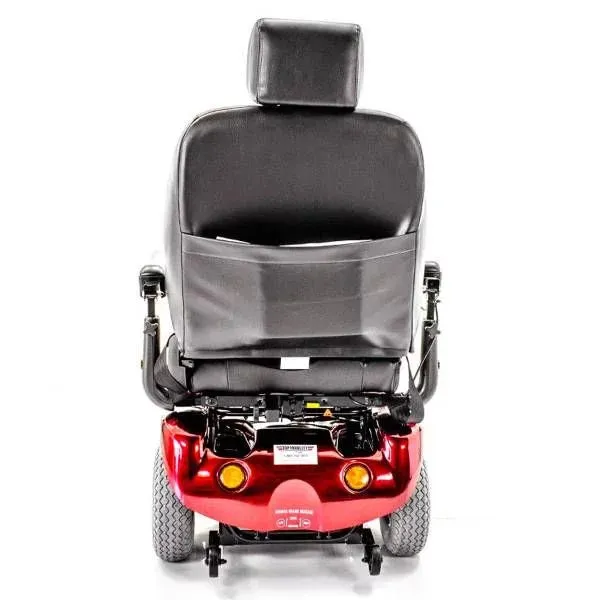

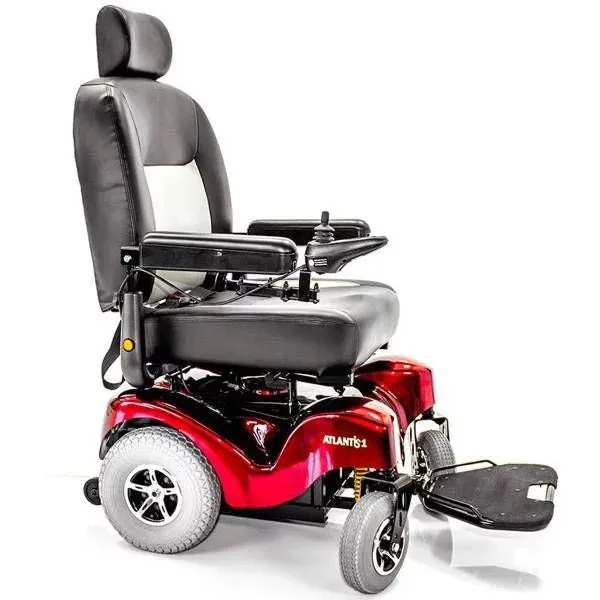

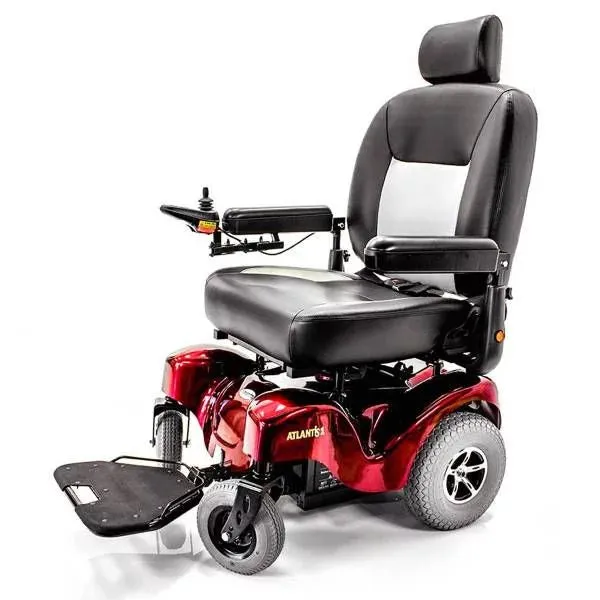

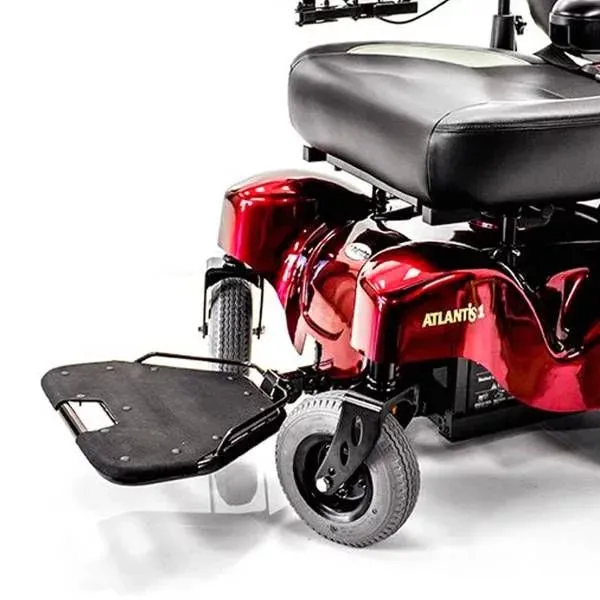

The Atlantis Heavy Duty Power Chair by Merits Health gives you durability and comfort with the added benefits of heavy-duty construction and design with a 600 lbs weight capacity. With a 31.5-inch turning radius, 12-inch drive wheels, and a high-powered motor, the Atlantis Heavy Duty Power Chair will get you where you need to go with ease.

The extra-wide, extra-high back Captain’s Seat keeps users with a higher weight comfortable and supported while zooming around the neighborhood. The high, 32-mile drive ranges provide peace of mind while out on the go.

Specifications

Drive Range:	32.00 miles
Top Speed:	5.00 mph
Disassembles:	No
Heaviest Piece:	167 lbs.
Turning Radius:	31.50"
Ground Clearance:	3.00"
Tire Type:	Air Filled
Maximum Incline Rating:	10º
Drive Type:	Rear Wheel Drive
Foldable:	No
Armrest Options:	Height Adjustable Flip-Back Width Adjustable
Legrest Options:	Footplate Upgradable Elevating Legrests
Seat Options:	Captain's Seat
Power Chair Seat Width:	24"
Seat Depths:	20"
Back Height:	25"
Maximum Seat to Floor Height:	24.00"
Overall Width:	27.00"
Overall Length:	44.00"
Joystick Options:	Right Left
Adjustable Hanger Brackets:	No
Battery Type:	12V, Group 24
Batteries Included:	Yes
Battery Charger Type:	Off Board
Drive Wheel Size:	12"
Caster Size:	9"
Battery Pack Weight:	86.00 lbs.
Weight Without Batteries:	218.00 lbs.
Controller Type:	Dynamic Shark 60A/PG VR2 60A
Suspension:	No
Seat Width Ranges:	24" - 25"



Warranty

• Lifetime on frame
• One year on electronics motors
• Six months on batteries
